LYOMAC TECHNOLOGY LTD Lab Scale R&D Lyophilizer

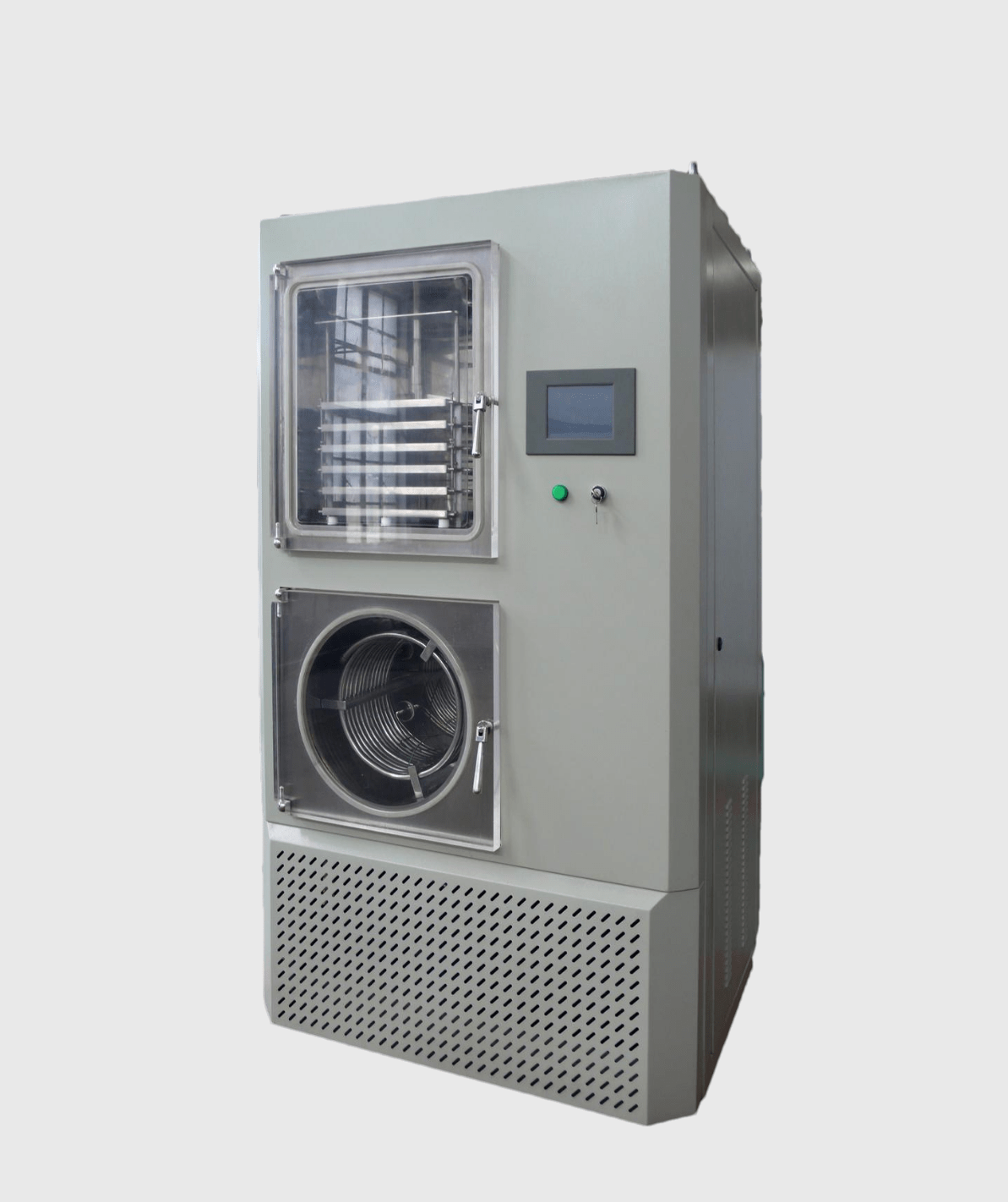

Laboratory Scale Freeze Dryer – Compact Lyophilizer for R&D & Laboratory Research
LYOMAC Laboratory Scale Freeze Dryer is a compact, high-precision vacuum lyophilization system specially developed for university labs, biotech R&D centers, pharmaceutical formulation laboratories and cosmetic raw material research institutes. This bench-type freeze dryer occupies minimal lab space, delivers stable, repeatable drying curves for heat-sensitive active substances, and provides reliable data support for subsequent process amplification to pilot and industrial production equipment.
All contact parts with samples adopt 316L medical stainless steel, smooth inner cavity without dead corners, easy disassembly and cleaning to avoid cross-contamination between different experimental batches. The independent cold trap design achieves ultra-low temperature down to -80℃, with strong water vapor capture capacity to ensure stable vacuum environment throughout the whole freeze-drying cycle.
Core Technical Advantages
High Precision Temperature & Vacuum ControlEquipped with intelligent PLC touchscreen control system, shelf adjustable temperature range from -55℃ to +70℃, temperature uniformity controlled within ±0.5℃; stable ultimate vacuum ≤5Pa. All temperature, vacuum and time parameters can be programmed into independent process recipes for one-click automatic operation.
Complete Data Traceability for Lab ValidationThe built-in data recording module automatically stores full-cycle lyophilization curve data, supports data export and historical recipe query, fully meets laboratory experimental record management requirements, and provides reliable parameter basis for pharmaceutical process validation.
Compact Modular Lab Layout DesignIntegrated refrigeration, vacuum and control unit, small floor area, can be placed on laboratory workbench or mobile trolley. Multiple optional loading configurations meet diversified experimental demands for petri dishes, flasks and bulk sample trays.
Low Noise & Energy-Saving OperationAdopts environment-friendly low-GWP refrigerant and silent vacuum pump unit, low heat emission, suitable for long-term continuous operation in closed laboratory environments without affecting other testing equipment.
Standardized Design for Process Scale-UpAll core control logic and temperature/vacuum control standards are consistent with LYOMAC pilot and industrial freeze dryers. Experimental parameters obtained on lab equipment can be directly converted and amplified on medium and large production machines, avoiding repeated process debugging.
Global Safety & Quality CertificationsThe whole machine passes CE safety certification, ISO9001 quality system standard. All electrical control components adopt international well-known brands, with multiple safety protection functions including over-temperature, over-pressure and power failure automatic shutdown.
Optional Custom Configurations
Organic solvent recovery system for special biological samples
Nucleation induction module to improve batch drying uniformity
Mobile stainless steel trolley for flexible laboratory movement
Remote data monitoring & cloud storage module
Complete laboratory test validation documents
Less utility, just need electrical plug in to use
Build with computer SCADA system, precise data report will be record
Low noise running, easy use at office
Optional to build with stainless steel panle, sterile room allowed to install.
Optional to be with stoppering, eutectic detector, ClP and SlP system
Specification List :
| Model | LYOPRO-0.2 | LYOPRO-0.4 | LYOPRO-0.6 |
| Drying capacity (Liter) | 4 | 8 | 12 |
| Shelf area (m2) | 0.24 | 0.4 | 0.6 |
| Shelf size (L*W*H)(mm) | 400*300*13 | 450*300*13 | 500*300*13 |
| Usable shelf No | 2 | 3 | 4 |
| Vial loading quantity φ16/22 | 980/500 | 1660/875 | 2460/1300 |
| Inter-Shelf distance (mm) | 75 | 75 | 75 |
| Shelf ultimate cooling temperature (OC) | -40/-55 | -40/-55 | -40/-55 |
| Condenser ultimate cooling temperature (OC) | -50/-75 | -50/-75 | -50/-75 |
| Ultimate vacuum (Pa) | ≤2.0 | ≤2.0 | ≤2.0 |
| Installation dimension (L*W*H)(mm) | 1200*800*1900 | 1400*900*1900 | 1500*1200*1900 |
| Weight (Kg) | 300 | 500 | 800 |
| Power (KW) | 4.0 | 5.0 | 8.0 |
Q: Can experimental data from this lab freeze dryer be applied to large industrial machines?A: Yes. The temperature, vacuum and heating control logic of LYOMAC full series freeze dryers adopt unified standards. Lab test parameters can be directly scaled up to pilot and industrial lyophilizers to reduce repeated process debugging time.
Q: Is the equipment suitable for sterile laboratory environments?A: The inner tank is smooth 316L stainless steel without dead corners, easy to wipe and disinfect, fully matching the hygiene requirements of pharmaceutical sterile R&D labs.
Q: Does the machine support long-term unattended experimental operation?A: Equipped with complete over-temperature, over-pressure and power-off protection system, supporting 24-hour automatic freeze-drying program operation and automatic alarm for abnormal parameters.
